data taken from various sources on the internet
I J P E ISP JSP

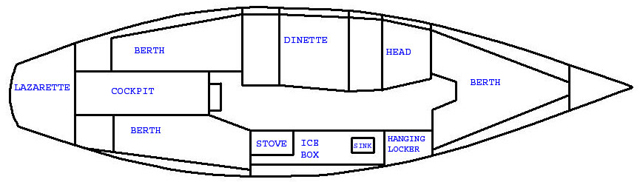

HUGHES 29 TALL 33.25 11.00 31.98 10.75
HUGHES 29   30.08 9.74 34.00 12.92
HUGHES 29   33.30 11.00 30.00 10.80 33.30 11.00
HUGHES 29 33.40 11.00 30.20 11.00 33.40 11.00
SAIL AREAS LISTED IN HUGHES BROCHURE
TOTAL                               360 SQ FT
MAIN                                  155 SQ FT
FORE TRIANGLE            183  SQ FT  (LISTED WRONG IN (BROCHURE)
WORKING JIB (110%)   205 SQ FT
NO.1 GENOA                    306 SQ FT



Hughes Home Page Hughes 25, 29 and 38 original 4 page sales brochure Sail Plan History of Hughes Boat Works Inc. Projects (Restoration and updating) Boat Identification Owners List

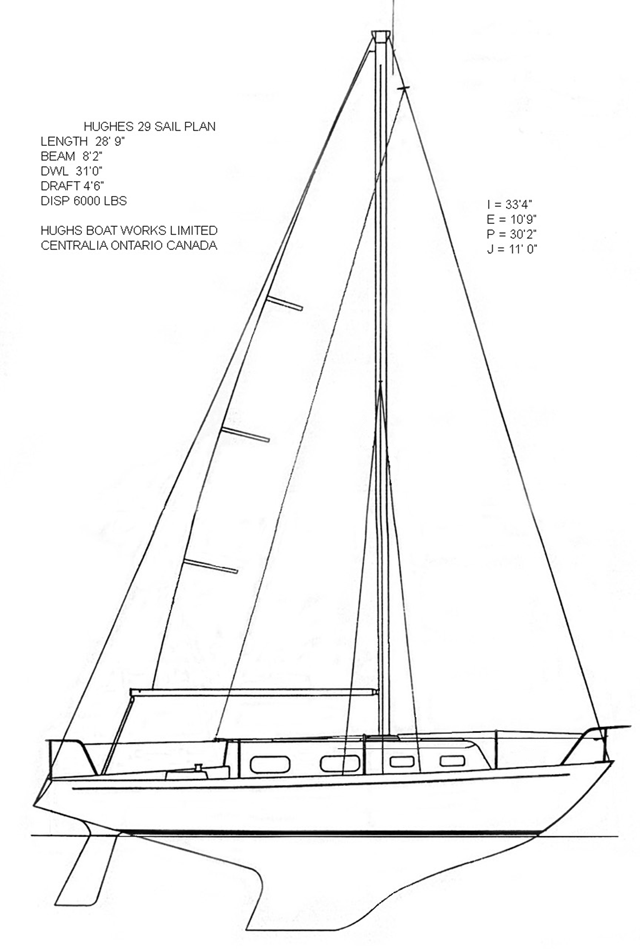

Hughes 29 sail plan (notice that some of the numbers are wrong or just way off.  I will be posting actual measurements taken from my boat #052)

FROM US SAILING WEBSITE  (www.ussailing.org/phrf)

PHRF RATING

LOWEST

HIGHEST

AVERAGE

HUGHES 25

228

231

228

HUGHES 26

234

234

234

HUGHES 29 204 223 216

HUGHES 31

189

192 189

HUGHES 35

147 156 150

HUGHES 35 SD

153

159

156

HUGHES 38 TM

120

144

135

HUGHES 38-1

144

156

147

HUGHES 38-2

147

147

147

HUGHES 38M

120

120

120

HUGHES 40

183

210

192

HUGHES 48

112

114

111



LOA

Length Overall - overall tip-to-tip length of the boat
LWL
Length Waterline - length of waterline of the boat
DWL
Design Waterline -theoretical waterline length of boat as opposed to LWL, which is actual waterline length
BMX
Beam Maximum - width of the boat at the widest point
I
Height of the fore triangle measured from the top of the highest sheave to the sheer line ( ISP is for spinnaker)
I2
Height of staysail halyard above deck
J
Base of the fore triangle measured from the front of the mast to the intersection of the forestay and deck    ( JSP is for spinnaker)
J2
Base of staysail triangle
P
Luff length of the mainsail
E
Foot length of the mainsail
1)  Hughes mast measurements taken from original mast of hull #052  (click here for PDF)
2)   Genoa measurement sheet used when ordering new 155% Genoa  (click here for PDF)
3)
4)
5)
